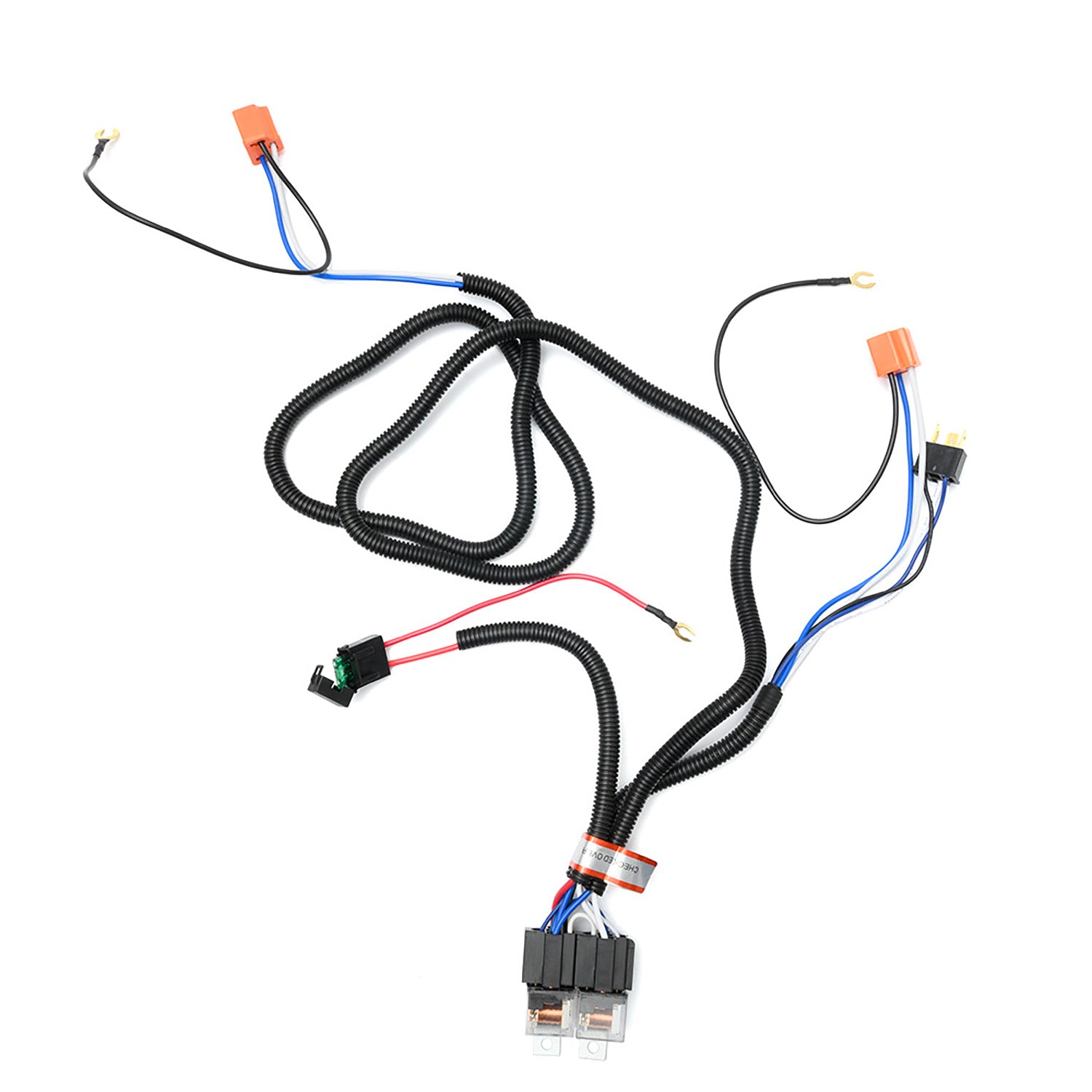

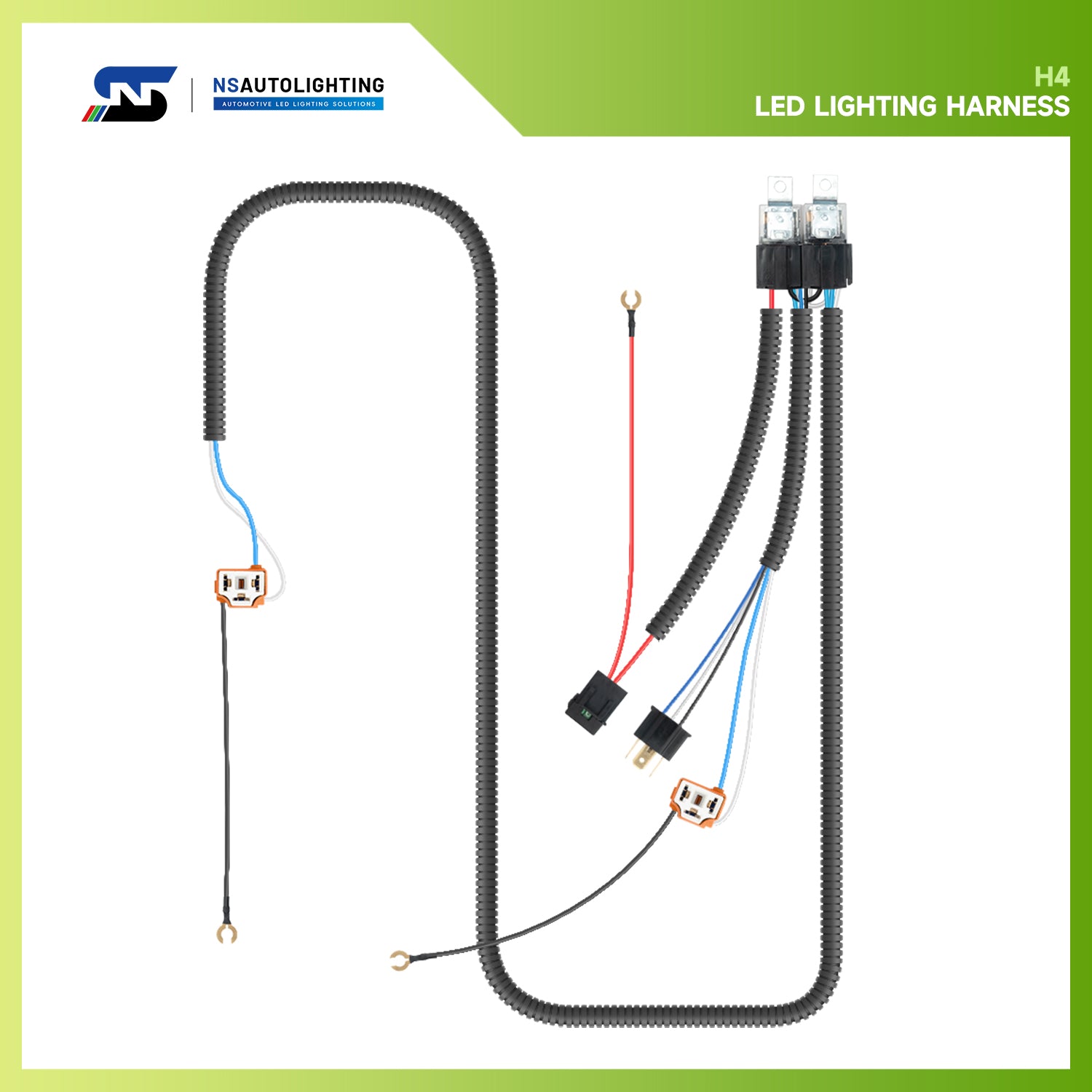

H4 H6054 Headlight Relay Harness Kit for 5x7 7x6 7" Sealed Beam LED Headlights

Specifications：

• Power Source: DC
• Maximum Input Voltage: 15V
• Minimum Input Voltage: 6V
• Voltage Drop: Approximately 0.5V (Depends on Headlight Power)
• Maximum Allowed Power: 240W
• Rated Current: 20A
• Rated Upper Temperature Limit: 90°C
• Wire Gauge: 14AWG (2.5mm2)
• Fuse Specification: 30A Blade Type
• Relay Specification: 80A 12V SPST 4 Pin Relay
• Socket Insulation Material: Ceramic

Features

• Convert the negative headlight system(-\-\+) aka double ground system to a normal system(+\+\-), you can turn on the low beam or high beam correctly, otherwise, you will face abnormal function of the low beam or high beam when upgrading the LED headlight assembly, or the fuse keeps blowing.

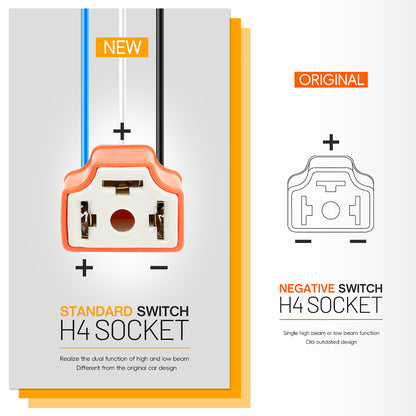

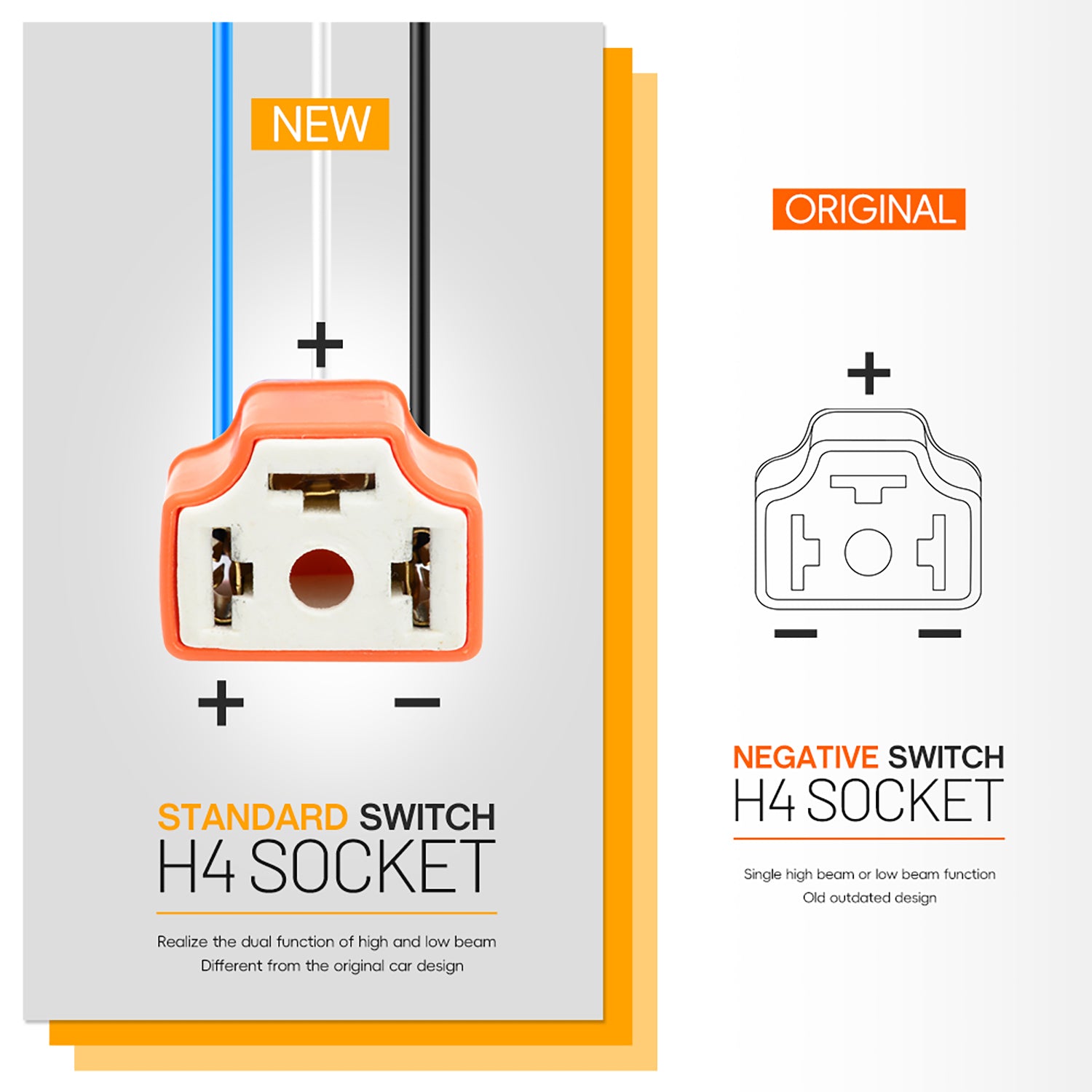

• Different from the original car design, it has a standard switch H4 socket, which can realize the dual function of high and low beam.

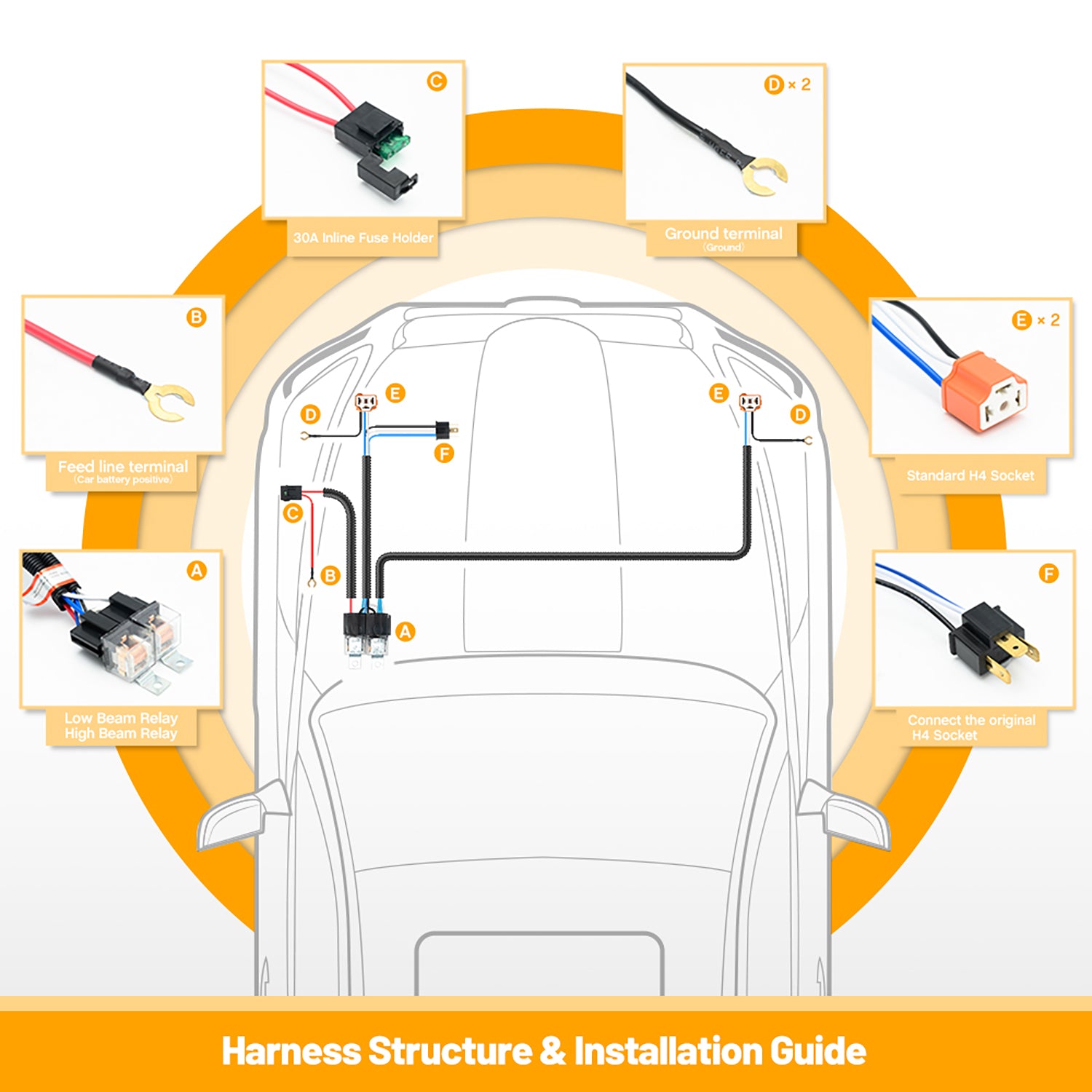

• P&P design, draws power directly from the car battery, avoiding the original headlight wiring. This results in a smaller voltage drop, meaning your headlights will be significantly brighter. For example, the infamous Jeep Wrangler TJ YJ's dim headlights will be improved.
• You can use off-road heavy-duty high-watt H4 bulbs and no longer worry about burning your headlight wiring, the 14AWG pure copper wire can allow up to 20 amps total current.

Fitment:

US Market

Negative Headlight System Vehicles:

• 2006-2010 Hummer H3 (H13)
• 2009-2010 Hummer H3T (H13)
• 1985-1995 Toyota MR2 (H6054)
• 1986-1992 Toyota Supra (H6054)
• 1982-1993 Toyota Celica (H6054)
• 1983-1987 Toyota Tercel (H6054)
• 1996-2002 Toyota 4Runner (H4)
• 1992-1995 Toyota 4Runner (9004)
• 1984-1991 Toyota 4Runner (H6054)
• 1984-1994 Toyota Pickup (H6054)
• 1995-1997 Toyota Tacoma (H6054)
• 1982-1991 Toyota Corolla (H6054)
• 1999-2004 Suzuki Vitara (H4)
• 1989-1998 Suzuki Sidekick (9004)
• 1986-1995 Suzuki Samurai (H6024)
• 1999-2005 Suzuki Grand Vitara (H4)
• 1986-1989 Acura Integra (H6054)
• 1983-1985 Honda Civic (H6054)
• 1986-1989 Honda Accord (H6054)
• 1983-1991 Honda Prelude (H6054)
• 1970-1973 Datsun 240Z (H6024)
• 1974-1974 Datsun 260Z (H6024)
• 1975-1978 Datsun 280Z (H6024)
• 1979-1983 Datsun 280ZX (H6024)
• 1992-1997 Subaru Legacy (H4)
• 1998-2005 Subaru Forester (H4)
• 1993-2000 Subaru Impreza (H4)
• 2001-2003 Subaru Impreza WRX (9007)
• 2001-2003 Subaru Impreza WRX STI (9007)
• 1991-1993 Mitsubishi 3000GT (H4666)

• 1987-1995 Jeep Wrangler YJ (H6054)
• 1997-2006 Jeep Wrangler TJ (H6024)
• 1984-2001 Jeep Cherokee XJ (H6054)
• 1986-1992 Jeep Comanche MJ (H6054)

Vehicles to Retrofit High-power H4 Bulbs:

• 1998-2015 Toyota Tacoma (H4)

EU Market

Negative Headlight System Vehicles:

• 2005-2015 Toyota Hilux (H4)
• 2005-2013 Toyota HiAce (H4)
• 1996-1999 Toyota Starlet (H4)
• 1990-1997 Toyota Land Cruiser J8 (H4)
• 1996-2002 Toyota Land Cruiser 90 (H4)
• 2003-2010 Toyota Land Cruiser 120 (H4)
• 1988-1998 Suzuki Vitara (H4)
• 1988-2004 Suzuki Samurai (H4)
• 1998-2011 Suzuki Santana (H4)
• 1998-2018 Suzuki Jimny FJ (H4)
• 1998-2005 Suzuki Grand Vitara (H4)

Vehicles to Brighten Headlights:

• 1998-2005 VW Lupo (H4)
• 1981-1990 VW Polo II (H4)
• 1983-1992 VW Golf II (H4)
• 1991-1997 VW Golf III Single Halogen Headlamp Only (H4)
• 1984-1992 VW Jetta II (H4)
• 1980-1988 VW Passat B2 (H4)
• 1981-1992 VW Scirocco II (H4)
• 1988-1995 VW Corrado (H4)
• 1979-1992 VW Transporter T3 (H4)
• 1990-2003 VW Transporter T4 (H4)
• Cross reference number: H4 9003 H6054 H5054 H6054LL 6014 6052 6053

✳The brackets indicate the original headlight specifications, non-H4, H6054, H6024 models mean the connectors need to be modified.

Package:

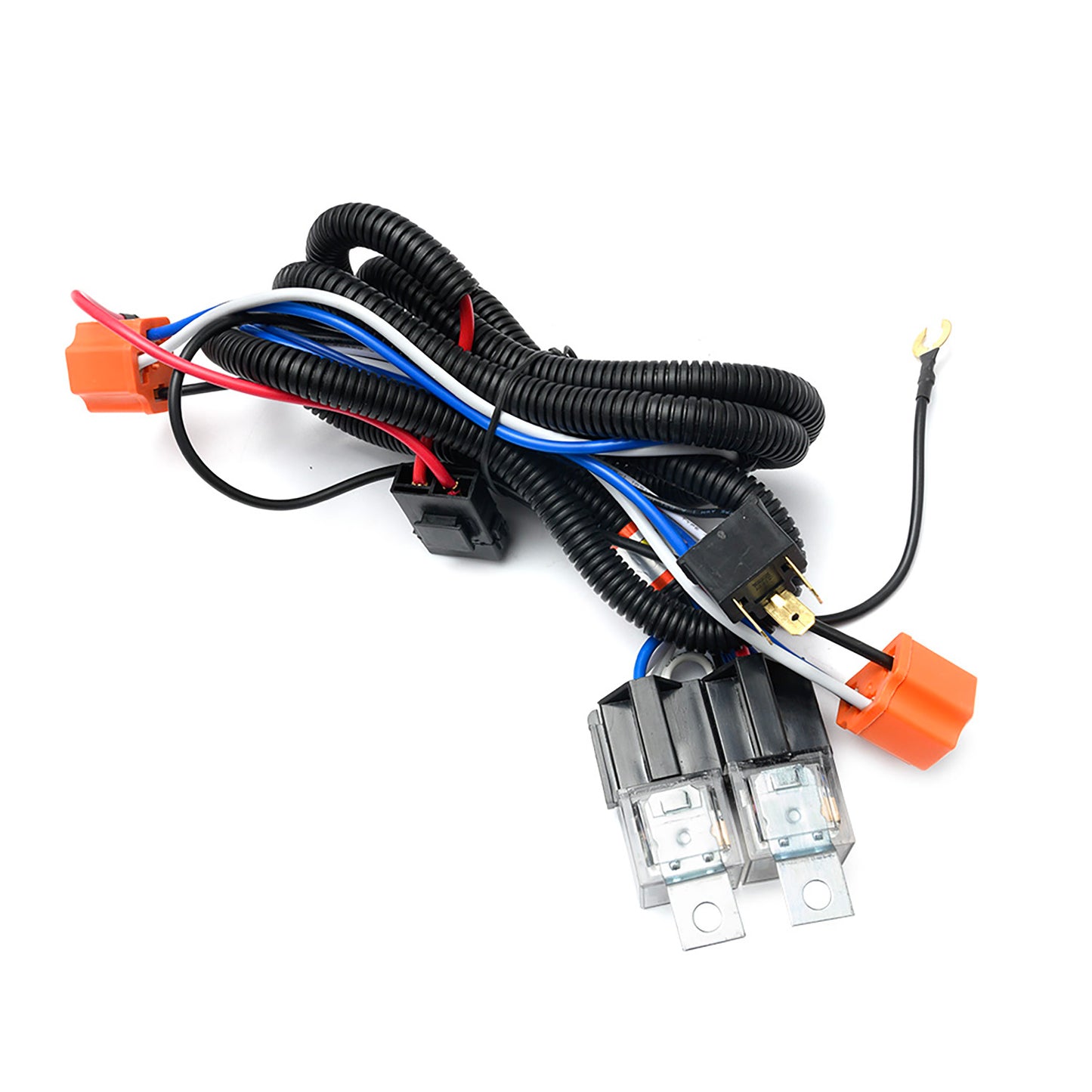

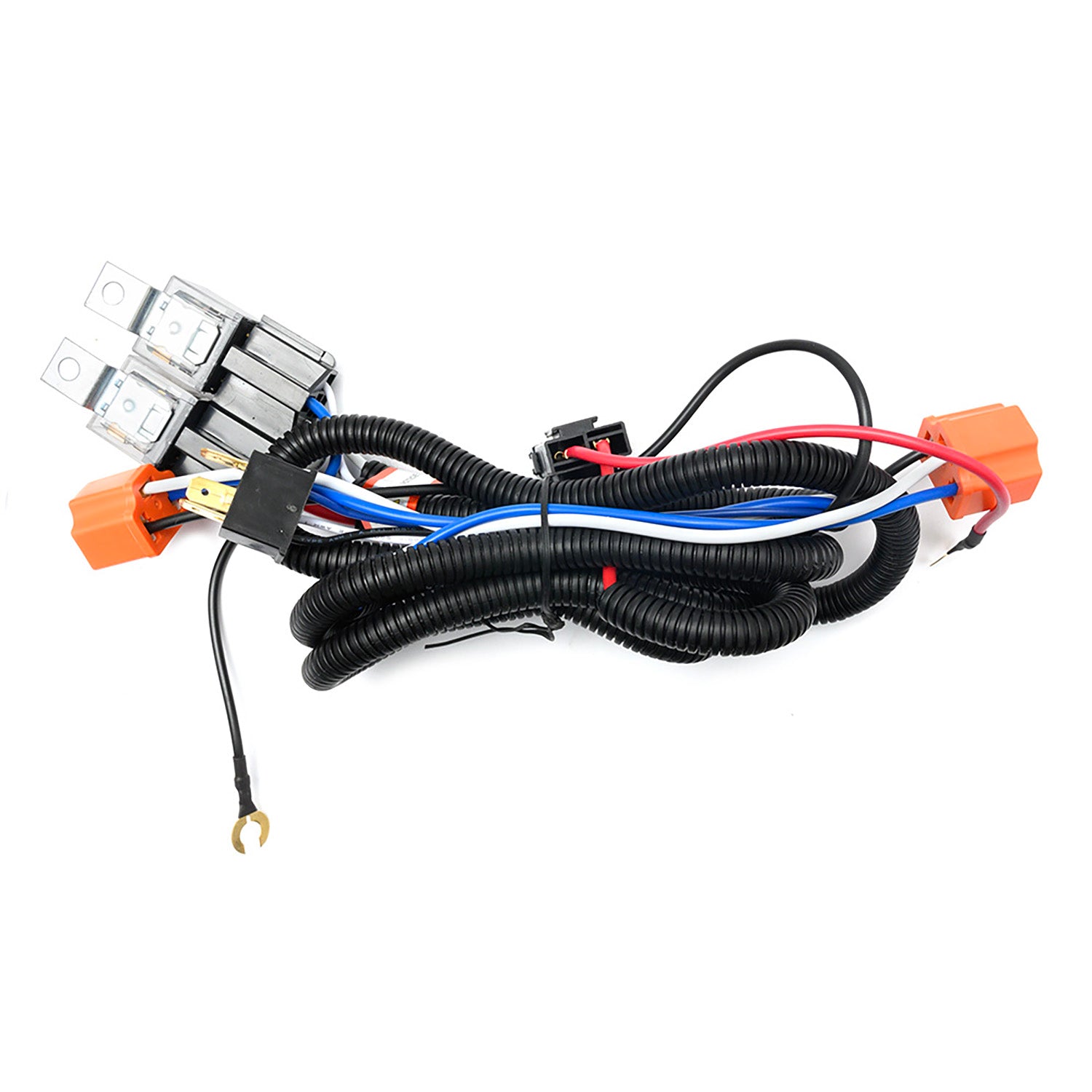

• 1x H4 UPGRADED HEADLIGHT HARNESS
